DNS Resolution: Hành trình từ Domain Name đến IP Address
Giới thiệu
Bạn gõ google.com vào trình duyệt, nhấn Enter, và website xuất hiện trong chớp mắt. Có vẻ đơn giản phải không? Nhưng đằng sau đó là một trong những hệ thống phân tán phức tạp nhất từng được xây dựng - Domain Name System (DNS).
Mỗi giây, có hàng triệu DNS queries xảy ra trên toàn cầu. Nó là “danh bạ điện thoại của Internet” - dịch từ tên domain mà con người dễ nhớ sang địa chỉ IP mà máy tính hiểu được. Và điều kỳ diệu là: nó diễn ra trong chưa đầy 100ms, với availability 99.999%.
Trong 10 năm làm việc với infrastructure và DevOps, tôi đã gặp vô số incidents liên quan đến DNS - từ misconfiguration đơn giản cho đến sophisticated DDoS attacks. Hiểu DNS không chỉ giúp bạn debug nhanh hơn, mà còn design systems scalable hơn.
Hôm nay, chúng ta sẽ đi sâu vào từng bước của DNS resolution, từ browser cache cho đến root servers, và học cách optimize performance.
Khái niệm Cốt lõi
DNS: Hệ thống Phân cấp Phân tán
DNS (Domain Name System) là một distributed, hierarchical database dịch domain names thành IP addresses.
Analogy của Hệ thống Bưu điện:
Imagine bạn muốn gửi thư cho “John Smith” ở Việt Nam:
John Smith
123 Main Street
Ward 5, District 1
Ho Chi Minh City
VietnamBưu điện xử lý từng level:
- Vietnam → Route đến Việt Nam (Root Server)
- Ho Chi Minh City → Route đến TP.HCM (TLD Server)
- District 1 → Route đến Quận 1 (Authoritative Server)
- Ward 5, 123 Main Street → Tìm địa chỉ chính xác
- John Smith → Giao thư
DNS hoạt động tương tự, nhưng ngược lại (từ phải sang trái)!
Cấu trúc Domain Name
www.example.com.
│ │ │ └─ Root (.)
│ │ └───── Top-Level Domain (TLD)
│ └──────────── Second-Level Domain (SLD)
└───────────────── SubdomainCác loại TLD:
- Generic TLD (gTLD): .com, .net, .org, .edu
- Country Code TLD (ccTLD): .vn, .uk, .jp, .de
- New gTLD: .tech, .dev, .app, .xyz
Fully Qualified Domain Name (FQDN):
www.example.com. (chú ý dấu chấm cuối - root!)
DNS Record Types
Các loại DNS records phổ biến:
| Record Type | Purpose | Example |
|---|---|---|
| A | IPv4 address | example.com → 93.184.216.34 |
| AAAA | IPv6 address | example.com → 2606:2800:220:1:… |
| CNAME | Canonical name (alias) | www → example.com |
| MX | Mail server | mail → mail.example.com (priority 10) |
| TXT | Text data (SPF, DKIM) | “v=spf1 include:_spf.google.com” |
| NS | Name server | ns1.example.com |
| SOA | Start of Authority | Primary NS, admin email, serial |
| PTR | Reverse lookup | 34.216.184.93 → example.com |
| SRV | Service location | _sip._tcp → server:port |
| CAA | Certificate Authority | issue “letsencrypt.org” |
Technical Deep Dive

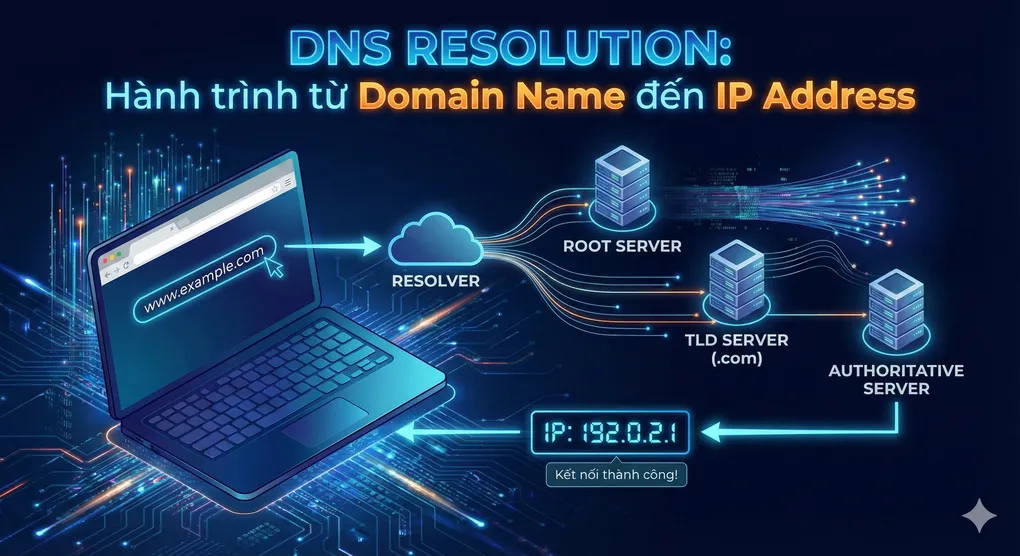

DNS Resolution Process: 8 Bước Chi tiết
User Browser Resolver Cache
│ │
│ 1. Query: google.com │
│─────────────────────────────>│
│ │ 2. Check cache
│ │ Not found!
│ │
│ │ 3. Query Root Server
│ │─────────────────────────>
│ │ Root Server
│ │ 4. Response: .com TLD (.com, .net, .org...)
│ │<─────────────────────────┘
│ │
│ │ 5. Query TLD Server
│ │─────────────────────────>
│ │ TLD Server
│ │ 6. Response: NS for (Manages .com domains)
│ │ google.com
│ │<─────────────────────────┘
│ │
│ │ 7. Query Authoritative
│ │─────────────────────────>
│ │ Authoritative NS
│ │ 8. Response: IP address (google.com servers)
│ │ 142.250.185.46
│ │<─────────────────────────┘
│ │
│ 9. Return: 142.250.185.46 │
│<─────────────────────────────┘
│
│ 10. Connect to IP
│──────────────────────────────────────────────────>
Google Server[Insert Diagram: DNS Resolution Flow]
Bước-by-Bước Breakdown
1. Browser Cache Check:
// Pseudo-code của browser DNS cache
const browserCache = new Map<string, DNSCacheEntry>();
interface DNSCacheEntry {
domain: string;
ip: string;
ttl: number;
timestamp: number;
}
function resolveDomain(domain: string): string | null {
const cached = browserCache.get(domain);
if (cached) {
const age = Date.now() - cached.timestamp;
if (age < cached.ttl * 1000) {
console.log('✅ Browser cache hit!');
return cached.ip;
} else {
console.log('⏰ Cache expired, removing...');
browserCache.delete(domain);
}
}
console.log('❌ Cache miss, querying OS...');
return null;
}Check browser cache trong Chrome:
chrome://net-internals/#dns2. OS Cache Check:
# Linux/Mac - check system DNS cache
sudo systemd-resolve --statistics # systemd-resolved
dscacheutil -cachedump -entries # macOS
# Windows
ipconfig /displaydns3-4. Root Server Query:
Có 13 root server clusters trên thế giới (A-M):
a.root-servers.net (Verisign)
b.root-servers.net (USC-ISI)
c.root-servers.net (Cogent)
...
m.root-servers.net (WIDE Project)Root server chỉ biết TLD servers, không biết google.com là gì!
Query: google.com?
Response: "Tôi không biết google.com, nhưng .com TLD server ở đây:
a.gtld-servers.net (192.5.6.30)
b.gtld-servers.net (192.33.14.30)
..."5-6. TLD Server Query:
TLD server cho .com manage hàng triệu domains:
Query: google.com?
Response: "Authoritative NS cho google.com là:
ns1.google.com (216.239.32.10)
ns2.google.com (216.239.34.10)
ns3.google.com (216.239.36.10)
ns4.google.com (216.239.38.10)"7-8. Authoritative Server Query:
Đây là server “chính thức” cho google.com:
Query: google.com A record?
Response: "142.250.185.46
TTL: 300 seconds
Additional: IPv6 address, MX records, etc."DNS Query Types
1. Recursive Query: Client → Resolver: “Tìm google.com cho tôi, tôi sẽ đợi!”
2. Iterative Query: Resolver → Root/TLD: “Bạn biết google.com không?” Root: “Không, nhưng hỏi server này đi”
3. Non-recursive Query: Resolver có cache rồi, trả lời ngay!
DNS Packet Structure
DNS Header (12 bytes):
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
| ID |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
|QR| Opcode |AA|TC|RD|RA| Z | RCODE |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
| QDCOUNT |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
| ANCOUNT |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
| NSCOUNT |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
| ARCOUNT |
+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+--+
Fields:
- QR: Query (0) or Response (1)
- RD: Recursion Desired
- RA: Recursion Available
- RCODE: Response Code (0=success, 3=NXDOMAIN)Code Implementation
Ví dụ 1: DNS Resolver từ đầu (Python)
# simple_dns_resolver.py
import socket
import struct
from typing import List, Tuple
class DNSResolver:
def __init__(self, dns_server: str = '8.8.8.8'):
"""
Initialize DNS resolver
Default: Google Public DNS (8.8.8.8)
"""
self.dns_server = dns_server
self.dns_port = 53
self.sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
self.sock.settimeout(5.0)
def build_dns_query(self, domain: str, query_type: int = 1) -> bytes:
"""
Build DNS query packet
query_type: 1=A, 28=AAAA, 15=MX, 16=TXT
"""
# Transaction ID (random)
transaction_id = struct.pack('!H', 0x1234)
# Flags: Standard query, recursion desired
flags = struct.pack('!H', 0x0100)
# Questions: 1, Answers: 0, Authority: 0, Additional: 0
qdcount = struct.pack('!H', 1)
ancount = struct.pack('!H', 0)
nscount = struct.pack('!H', 0)
arcount = struct.pack('!H', 0)
# DNS Header (12 bytes)
header = transaction_id + flags + qdcount + ancount + nscount + arcount
# Question Section
question = b''
for part in domain.split('.'):
question += struct.pack('!B', len(part))
question += part.encode()
question += b'\x00' # End of domain
# Query type (A record) and class (IN)
question += struct.pack('!HH', query_type, 1)
return header + question
def parse_dns_response(self, response: bytes) -> List[str]:
"""
Parse DNS response packet
"""
# Skip header (12 bytes)
offset = 12
# Skip question section
while response[offset] != 0:
offset += response[offset] + 1
offset += 5 # Null byte + type + class
# Parse answer section
answers = []
ancount = struct.unpack('!H', response[6:8])[0]
for _ in range(ancount):
# Skip name (compression pointer)
if (response[offset] & 0xC0) == 0xC0:
offset += 2
else:
while response[offset] != 0:
offset += response[offset] + 1
offset += 1
# Parse type, class, TTL, data length
rtype, rclass, ttl, rdlength = struct.unpack(
'!HHIH',
response[offset:offset+10]
)
offset += 10
# Parse A record (IPv4)
if rtype == 1 and rdlength == 4:
ip = '.'.join(str(b) for b in response[offset:offset+4])
answers.append(ip)
offset += rdlength
return answers
def resolve(self, domain: str) -> List[str]:
"""
Resolve domain to IP addresses
"""
print(f"🔍 Resolving {domain}...")
# Build query
query = self.build_dns_query(domain)
# Send query
self.sock.sendto(query, (self.dns_server, self.dns_port))
print(f"📤 Query sent to {self.dns_server}")
# Receive response
response, _ = self.sock.recvfrom(512)
print(f"📩 Response received ({len(response)} bytes)")
# Parse response
ips = self.parse_dns_response(response)
return ips
def close(self):
self.sock.close()
# Usage
if __name__ == "__main__":
resolver = DNSResolver()
domains = ['google.com', 'github.com', 'stackoverflow.com']
for domain in domains:
try:
ips = resolver.resolve(domain)
print(f"✅ {domain} resolves to:")
for ip in ips:
print(f" - {ip}")
print()
except Exception as e:
print(f"❌ Error resolving {domain}: {e}\n")
resolver.close()Ví dụ 2: DNS với Caching (TypeScript/Node.js)
// dns-resolver-with-cache.ts
import * as dns from 'dns';
import { promisify } from 'util';
const dnsResolve4 = promisify(dns.resolve4);
const dnsResolve6 = promisify(dns.resolve6);
interface DNSCacheEntry {
ips: string[];
timestamp: number;
ttl: number;
}
class DNSResolverWithCache {
private cache: Map<string, DNSCacheEntry> = new Map();
private stats = {
cacheHits: 0,
cacheMisses: 0,
totalQueries: 0,
};
async resolve(domain: string, ttl: number = 300): Promise<string[]> {
this.stats.totalQueries++;
// Check cache first
const cached = this.cache.get(domain);
if (cached) {
const age = (Date.now() - cached.timestamp) / 1000;
if (age < cached.ttl) {
this.stats.cacheHits++;
console.log(`✅ Cache hit for ${domain} (age: ${age.toFixed(1)}s)`);
return cached.ips;
} else {
console.log(`⏰ Cache expired for ${domain}`);
this.cache.delete(domain);
}
}
// Cache miss - query DNS
this.stats.cacheMisses++;
console.log(`❌ Cache miss for ${domain}, querying DNS...`);
try {
const startTime = Date.now();
// Try IPv4
const ips = await dnsResolve4(domain);
const queryTime = Date.now() - startTime;
console.log(`📡 DNS query completed in ${queryTime}ms`);
// Store in cache
this.cache.set(domain, {
ips,
timestamp: Date.now(),
ttl,
});
return ips;
} catch (error) {
throw new Error(`DNS resolution failed: ${error.message}`);
}
}
async resolveMultiple(domains: string[]): Promise<Map<string, string[]>> {
console.log(`\n🔍 Resolving ${domains.length} domains...\n`);
const results = new Map<string, string[]>();
// Resolve all domains in parallel
await Promise.all(
domains.map(async (domain) => {
try {
const ips = await this.resolve(domain);
results.set(domain, ips);
} catch (error) {
console.error(`❌ Failed to resolve ${domain}: ${error.message}`);
results.set(domain, []);
}
})
);
return results;
}
clearCache() {
this.cache.clear();
console.log('🧹 Cache cleared');
}
getStats() {
const hitRate = this.stats.totalQueries > 0
? (this.stats.cacheHits / this.stats.totalQueries) * 100
: 0;
return {
...this.stats,
hitRate: hitRate.toFixed(2) + '%',
cacheSize: this.cache.size,
};
}
printStats() {
const stats = this.getStats();
console.log('\n📊 DNS Resolver Statistics:');
console.log(` Total Queries: ${stats.totalQueries}`);
console.log(` Cache Hits: ${stats.cacheHits}`);
console.log(` Cache Misses: ${stats.cacheMisses}`);
console.log(` Hit Rate: ${stats.hitRate}`);
console.log(` Cache Size: ${stats.cacheSize} entries\n`);
}
}
// Usage
async function main() {
const resolver = new DNSResolverWithCache();
const domains = [
'google.com',
'github.com',
'stackoverflow.com',
'reddit.com',
'youtube.com',
];
// First resolution (all cache misses)
console.log('=== First Resolution ===');
let results = await resolver.resolveMultiple(domains);
for (const [domain, ips] of results) {
console.log(`\n${domain}:`);
ips.forEach(ip => console.log(` - ${ip}`));
}
resolver.printStats();
// Second resolution (all cache hits!)
console.log('\n=== Second Resolution (should hit cache) ===');
results = await resolver.resolveMultiple(domains);
resolver.printStats();
// Resolve again after 2 seconds
console.log('\n⏳ Waiting 2 seconds...\n');
await new Promise(resolve => setTimeout(resolve, 2000));
console.log('=== Third Resolution ===');
await resolver.resolve('google.com', 1); // TTL = 1 second
resolver.printStats();
}
main().catch(console.error);Ví dụ 3: DNS Load Testing
# dns_load_test.py
import time
import socket
import threading
from typing import List
import statistics
class DNSLoadTester:
def __init__(self, domains: List[str], dns_server: str = '8.8.8.8'):
self.domains = domains
self.dns_server = dns_server
self.results = []
self.lock = threading.Lock()
def query_dns(self, domain: str) -> float:
"""Single DNS query với timing"""
start = time.perf_counter()
try:
socket.getaddrinfo(domain, None)
elapsed = (time.perf_counter() - start) * 1000 # ms
return elapsed
except Exception as e:
return -1
def worker(self, worker_id: int, iterations: int):
"""Worker thread thực hiện queries"""
for i in range(iterations):
for domain in self.domains:
latency = self.query_dns(domain)
with self.lock:
self.results.append({
'worker': worker_id,
'domain': domain,
'latency': latency,
'timestamp': time.time()
})
def run_test(self, num_workers: int = 10, iterations: int = 10):
"""Run load test"""
print(f"🚀 Starting DNS load test")
print(f" Workers: {num_workers}")
print(f" Iterations per worker: {iterations}")
print(f" Domains: {len(self.domains)}")
print(f" Total queries: {num_workers * iterations * len(self.domains)}")
print()
start_time = time.time()
# Create threads
threads = []
for i in range(num_workers):
t = threading.Thread(target=self.worker, args=(i, iterations))
threads.append(t)
t.start()
# Wait for completion
for t in threads:
t.join()
elapsed = time.time() - start_time
# Analyze results
self.print_results(elapsed)
def print_results(self, total_time: float):
"""Print test results"""
successful = [r['latency'] for r in self.results if r['latency'] > 0]
failed = len([r for r in self.results if r['latency'] < 0])
if successful:
print(f"\n📊 Load Test Results:")
print(f" Total Time: {total_time:.2f}s")
print(f" Total Queries: {len(self.results)}")
print(f" Successful: {len(successful)}")
print(f" Failed: {failed}")
print(f" QPS: {len(self.results) / total_time:.2f}")
print()
print(f" Latency Stats:")
print(f" Min: {min(successful):.2f}ms")
print(f" Max: {max(successful):.2f}ms")
print(f" Avg: {statistics.mean(successful):.2f}ms")
print(f" Median: {statistics.median(successful):.2f}ms")
print(f" P95: {sorted(successful)[int(len(successful) * 0.95)]:.2f}ms")
print(f" P99: {sorted(successful)[int(len(successful) * 0.99)]:.2f}ms")
# Usage
if __name__ == "__main__":
domains = [
'google.com',
'youtube.com',
'facebook.com',
'amazon.com',
'wikipedia.org'
]
tester = DNSLoadTester(domains)
tester.run_test(num_workers=20, iterations=50)Performance và Optimization
1. TTL (Time To Live) Strategy
# Check TTL của một domain
dig +nocmd google.com +noall +answer
# Output:
# google.com. 300 IN A 142.250.185.46
# ^^^--- TTL = 300 seconds (5 minutes)TTL Trade-offs:
| TTL Value | Pros | Cons |
|---|---|---|
| Low (60s) | Fast propagation, easy rollback | High DNS load, more latency |
| Medium (300s) | Balanced | Standard choice |
| High (86400s) | Minimal DNS queries | Slow propagation (24h!) |
2. DNS Prefetching
<!-- Prefetch DNS cho external resources -->
<link rel="dns-prefetch" href="//cdn.example.com">
<link rel="dns-prefetch" href="//api.example.com">
<link rel="dns-prefetch" href="//analytics.google.com">
<!-- Browser sẽ resolve các domains này sớm! -->3. DNS over HTTPS (DoH)
import requests
def dns_query_doh(domain: str, dns_server: str = 'https://1.1.1.1/dns-query'):
"""
Query DNS over HTTPS (encrypted!)
"""
params = {
'name': domain,
'type': 'A'
}
headers = {
'Accept': 'application/dns-json'
}
response = requests.get(dns_server, params=params, headers=headers)
data = response.json()
ips = [answer['data'] for answer in data.get('Answer', [])]
return ips
# Usage
ips = dns_query_doh('google.com')
print(f"IPs via DoH: {ips}")Benefits:
- ✅ Encrypted (không thể sniff)
- ✅ Bypass DNS censorship
- ✅ Privacy protection
Kết luận
DNS là một trong những hệ thống critical nhất của Internet, nhưng cũng là một trong những hệ thống ít được chú ý nhất - cho đến khi nó break!
Key Takeaways:
- Hierarchical system: Root → TLD → Authoritative
- Multiple layers of caching: Browser → OS → Resolver → Authoritative
- DNS uses UDP port 53 - fast but unreliable (TCP fallback nếu > 512 bytes)
- TTL is critical: Balance between freshness and performance
- Security matters: DNSSEC, DoH, DoT để protect against attacks
Lời khuyên từ kinh nghiệm:
“DNS is often forgotten until it breaks. Monitor it, cache it, and have a backup plan. 90% of ‘website down’ issues I’ve seen started with DNS.”
Best Practices:
- ✅ Use múltiple name servers (minimum 2, ideally 4+)
- ✅ Monitor DNS resolution latency
- ✅ Set appropriate TTLs (300s is good default)
- ✅ Implement DNS caching ở application layer
- ✅ Use CDN với anycast DNS
- ✅ Consider DNS failover strategies
- ✅ Enable DNSSEC for security
Remember: DNS là single point of failure. Invest time để hiểu và monitor nó!
Tài liệu tham khảo:
- RFC 1034, 1035: Domain Names - Implementation and Specification
- RFC 7871: Client Subnet in DNS Queries
- DNS Performance Testing Tools: dnsperf, dnstop
- Public DNS Servers: 8.8.8.8 (Google), 1.1.1.1 (Cloudflare)
Về tác giả: Senior Software Engineer với 10+ năm kinh nghiệm infrastructure và DevOps. Đam mê distributed systems và performance optimization.
